Combination Oven Sveba Dahlen

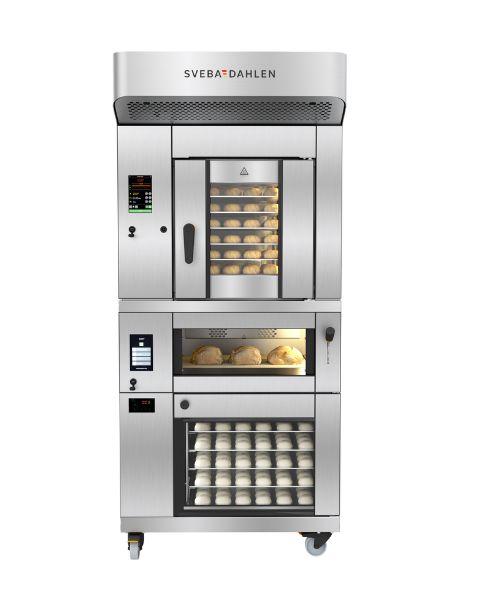

The S-Series is a highly versatile combination oven featuring a Rack Oven, Deck Oven, and Proofer in one compact unit[cite: 3]. Designed for maximum efficiency, it offers precision baking for a wide variety of bakery products within a small footprint[cite: 3].

3-in-1 Combination

High Precision Heat

Space-Saving Design

Energy Efficient

Request Wholesale Quote

Model & Technical Specifications	S-Series Combination
Modules included in combination	Rack Oven, Deck Oven, Proofer [cite: 3]
External dimensions B x D x H (mm)	990 x 1243 x 2220 [cite: 3]
Power, total [kW]	21.2 kW [cite: 3]
Average consumption, total [kW/h]**	12.7 kW/h [cite: 3]
Weight, total [kg]	500 kg [cite: 3]
Rack Oven: Max. baking temperature	300°C [cite: 3]
Rack Oven: Max no. of trays (600x400 mm)	10 pcs [cite: 3]
Deck Oven: Max. baking temperature	280°C [cite: 3]
Deck Oven: Baking area stone sole (mm)	630 x 450 mm [cite: 3]
Proofer: Max. temperature	60°C [cite: 3]
Proofer: Max number of trays (400x600 mm)	10 pcs [cite: 3]

** During continuous baking Approx. 60% of installed power[cite: 4].
