Home / Our Products / Deck Oven Electric

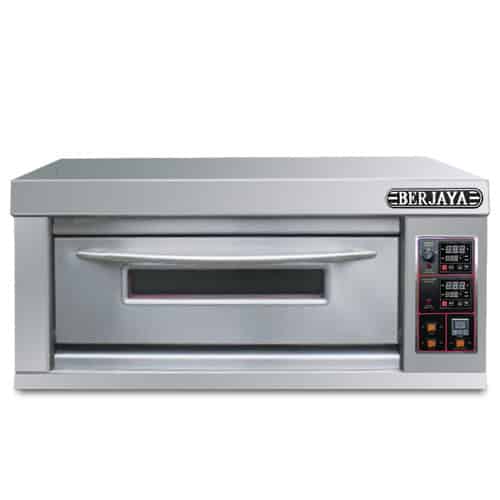

BJY-E3KW-1BD

Dec oven - Electric

  • Single deck single tray
  • Single deck two tray
  • Two deck four tray
  • Three deck six tray
  • Three deck nine tray
  • Tray Size — 600 x 400 mm
Request Wholesale Quote
Model
(Analog / Digital)		 1 Deck
BJY-E3KW-1BD		 1 Deck (6KW)

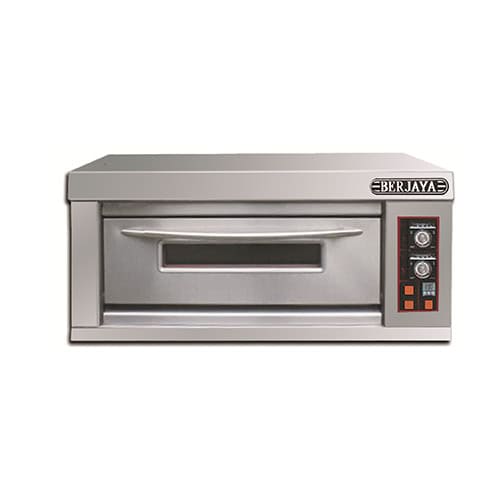

BJY-E6KW-1BD / 1BDD		 2 Decks

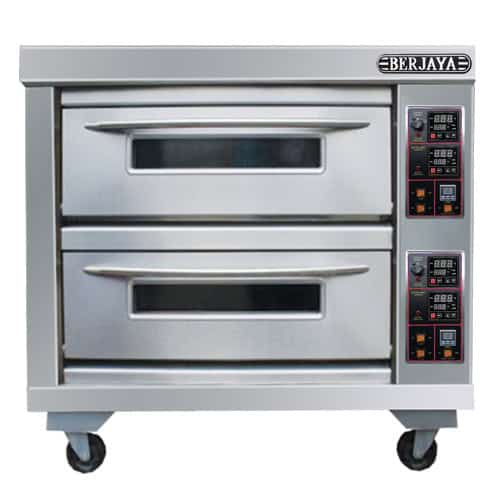

BJY-E13KW-2BDD		 3 Decks

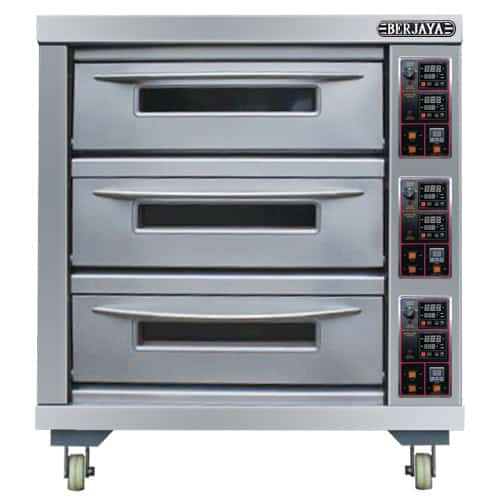

BJY-E20KW-3BDD		 3 Decks

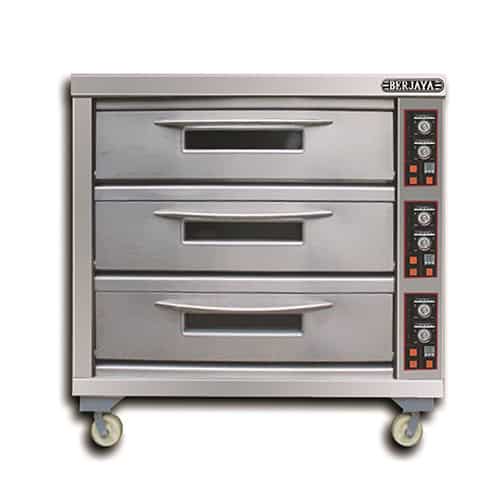

BJY-E25KW-3BD / 3BDD
Capacity (Kg/hr) 10 20 40 60 90
Temperature Range (°C) 20 - 300 20 - 300 / 20 - 400 20 - 300 / 20 - 400 20 - 300 / 20 - 400 20 - 300 / 20 - 400
Voltage / Phase (V/Ph) 220 - 240 / 1 220 - 240 / 1 380 - 415 / 3 380 - 415 / 3 380 - 415 / 3
Frequency (Hz) 50 / 60 50 / 60 50 / 60 50 / 60 50 / 60
Rated Input Power (W) 3000 6600 13200 / 13000 19800 25200
No. of Baking Tray 1 2 4 6 9
Inner Dim. / Deck (mm) 650x530x180 870x670x200 870x670x200 870x670x200 870x670x200
Machine Dim. (mm) 920x700x410 1250x845x615 1250x845x1220 1250x845x1615 1670x845x1640
Packing Dim. (mm) 980x740x450 1310x905x655 1310x905x1260 1310x905x1655 1730x905x1680
Weight (Kg) 41 85 / 119 150 200 / 245 280
Remark - Isolator 35A/1 Phase required - - -

Watch the Oven in Action
