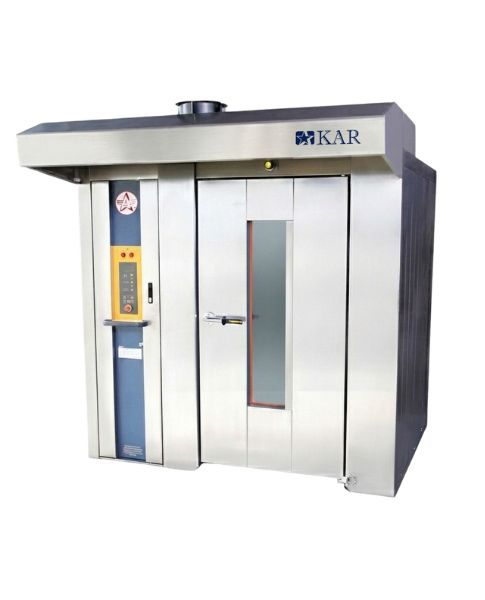

Rotary Rack Oven

The ultimate solution for high-volume industrial baking. Features a rotating rack system for perfectly uniform heat distribution across all trays. Available in Single, Double, and Four Trolley configurations.

Even Rotation Technology

High Capacity Trolley System

Max Temp: 300°C

Request Wholesale Quote

Production Capacity (Per Batch)

Product Type	V25	V50	V100	V200	V400
Bread (400g)	80 Loaves	120 Loaves	168 Loaves	420 Loaves	672 Loaves
Buns (45g)	224 Nos	336 Nos	432 Nos	1080 Nos	1728 Nos
Biscuits	9-10 kg	14 kg	20 kg	50 kg	80 kg
Puffs	195 Nos	300 Nos	450 Nos	1125 Nos	1800 Nos

Watch the Equipment in Action

Technical Specifications

Specification	V25 (Single)	V100 (Single)	V200 (Double)	V400 (Four)
Tray Size (mm)	450 x 450	450 x 700	450 x 700 (x2)	400 x 600 (x4)
Dimensions (WxDxH mm)	1800x1650x2200	1800x2000x1730	2260x2465x2515	2720x2800x2515
Connected Load	1.1 kW	1.1 kW	2.75 kW	4.35 kW
Approx. Weight (kg)	1500	1500	2550	3260
